4H Series

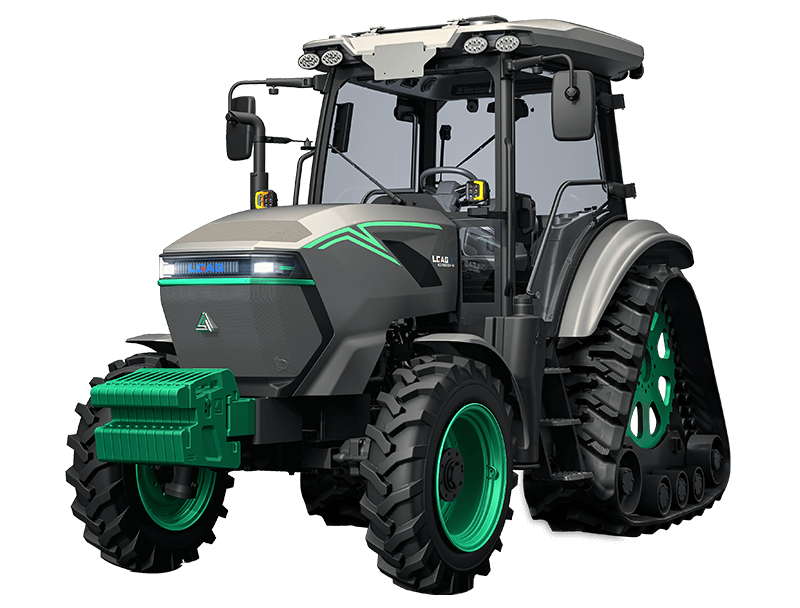

D1204-4H
- Engine model：V38-130C41
- Engine rated power/speed (kW/ r/min)：88.2/2300
- Fuel tank capacity (L)：180
Application Conditions

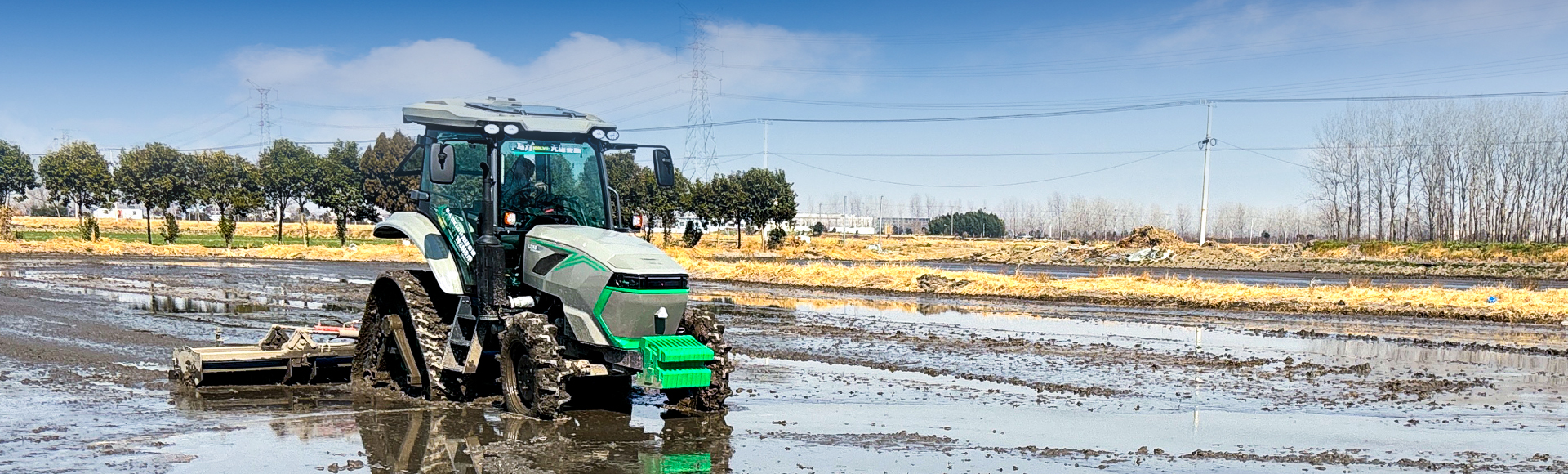

Paddy Field
Dryland
Paddy Field
Dryland
0-39KM two-range stepless speed; double-speed steering, small turning radius; wheel-track interchange, stronger adaptability.
The HMCVT transmission provides stepless speed from 0 to 39 KM, enabling smooth transitions between low and high speeds, and meeting the optimal speed requirements for various operational scenarios.
Three-speed PTO，Integrated with the vehicle controller to link PTO with the lift, starting and stopping the PTO as the lift raises and lowers.
The attached implements feature automatic balancing and contour-following capabilities, ensuring level operations such as rotary tillage and puddling, and delivering superior performance.
With a turning radius as small as 3 meters (compared to around 4 meters for similar models), it can make U-turns in small fields with ease, significantly improving operational efficiency.
Wheel and track options for users, better anti-sinking effect in paddy fields.
Real-time monitoring of operational data for the engine, transmission system, and attached implements allows users to stay informed about the machine's operating status at any time, enabling proactive fault prevention and detection.
