4MA Series

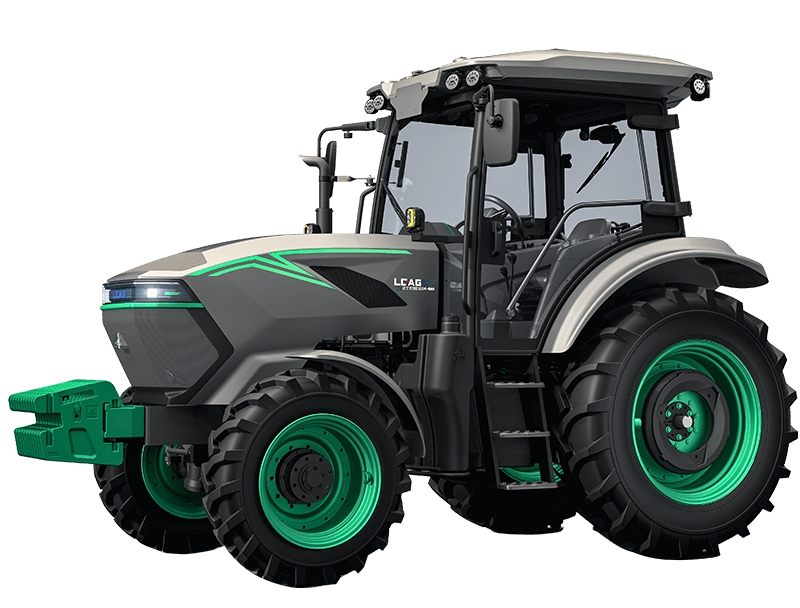

D1004-4MA

Application Conditions

Paddy Field Dryland

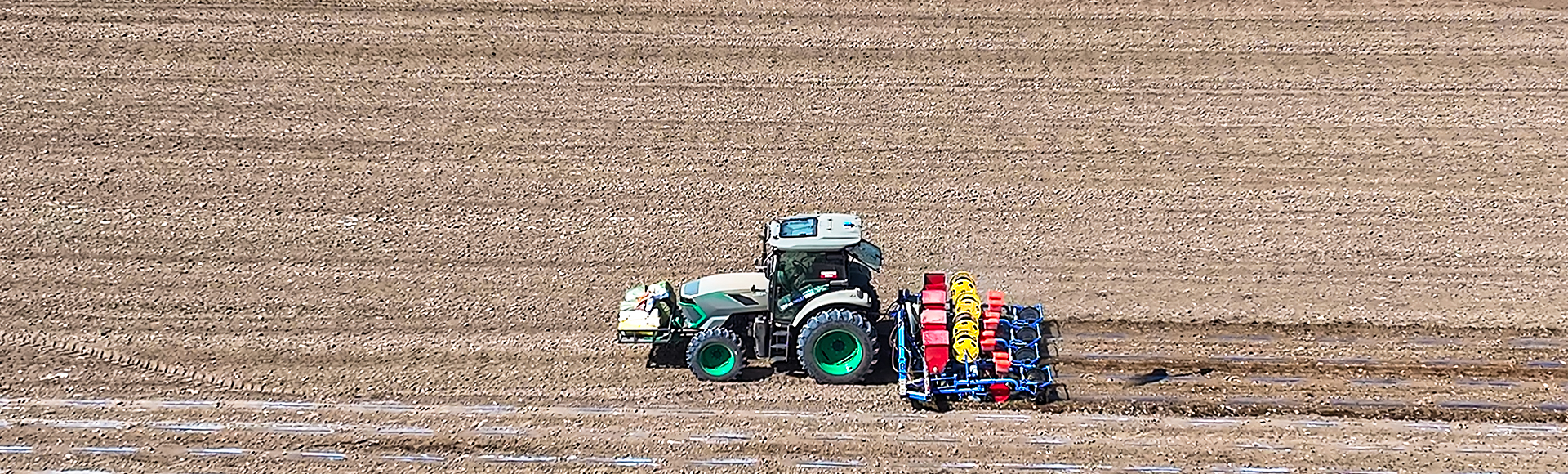

Dryland

Order Inquiry Worry-free Service

Reliability in Action

Minimum ground clearance 450MM。Brand new independently developed transmission，Steering angle greater than 45°.

Advantages and Features

12F + 12R synchronized shuttle shifting

Newly independently developed transmission featuring a 12F+12R synchronizer, shuttle shift, reliable quality, and user-friendly operation.
Built-in three-stage Donaldson air filter

Lifetime filtration efficiency up to 99.99%, maintenance cycle up to one year, effectively reducing maintenance costs.
Oil for independent hydraulic system

Enhancing the lifespan and stability of the chassis and vehicle hydraulic system, facilitating maintenance of the chassis and vehicle hydraulic systems.
Small turning radius

Steering angle greater than 45°,Minimum turning radius 4m.
Large ground clearance

Minimum ground clearance 450MM.
Standard rear wheels with infinitely adjustable width

Front wheel 1300mm-1950mm stepped, rear wheel 1300mm-1950mm stepless，meeting various agricultural operational needs.

Dual-purpose for both wet and dry conditions

Meet different operating conditions

Item Unit D1004-4MA: Engine model - Quanchai V38-110C43; Engine rated power/speed kW/ r/min 73.5/2300; Fuel tank capacity L 200; Transmission - Synchronizer shifting; Gear - 12F+12R; Speed range km/h 2.12-31.7; Maximum lifting capacity（At 610mm from the end of the lifting arm） kN ≥25; Number of hydraulic output groups - 2 groups, （3 groups optional）; PTO speed r/min 540/720；540/1000; Cab type features Four-pillar Mute Air-conditioned Cab; Overall dimensions （length × width × height） mm 4550×2060×2870; Wheelbase mm 2350; Wheel track, front/rear mm 1300-1950; Minimum operating weight kg 3950; Tires, front/rear - 11.2-24/16.9-34 (R-1)；11.2-24/16.9-34(PR1)；1.3m 11.2-24/12-38(R-1)；11.2-28/12-38(R-1、dry field front-axle)；11.2-28/16.9-34(R-1、dry field front-axle)；12.4-24/16.9-34(R-1)
