D904-4P-4P Series-Lingong Agricultural Equipment Co., Ltd.

4P Series

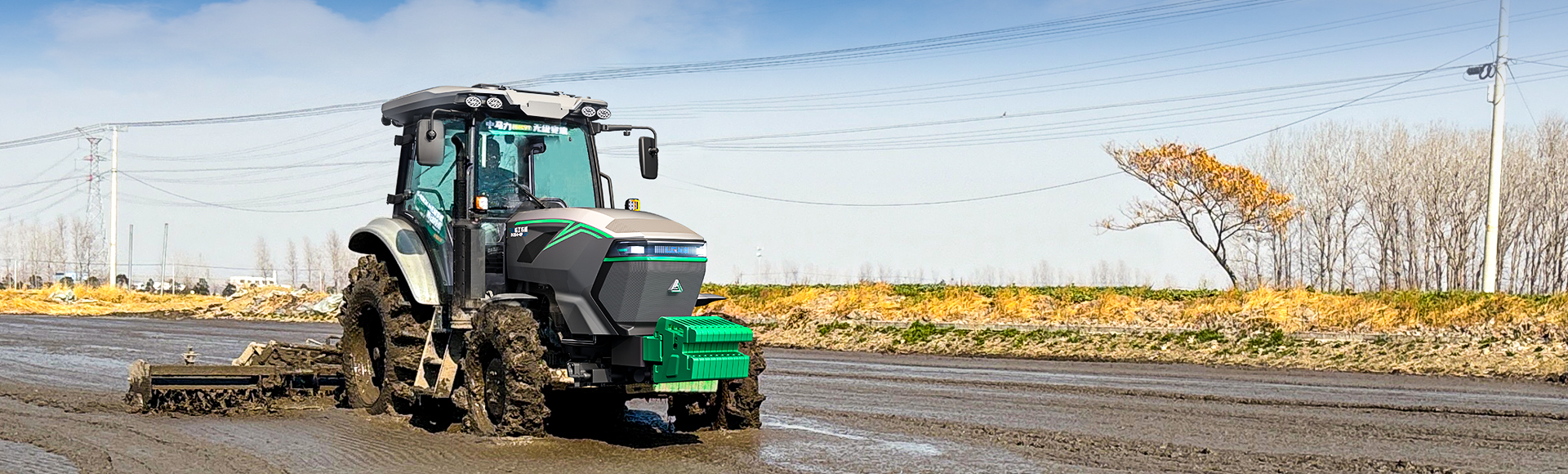

D904-4P

Application Conditions

Paddy Field Dryland

Dryland

Order Inquiry Worry-free Service

Reliability in Action

Adopting power shift technology, it delivers fast shifting speed, flexible turning, and is suitable for small paddy field operations.

Advantages and Features

Power shifting

Forward and reverse without needing to press the clutch, It reduces driver fatigue,allowing for quick direction changes, ideal for paddy fields and small plots.
PTO start-stop

Integrated with the vehicle controller to link PTO with the lift, starting and stopping the PTO as the lift raises and lowers.
Small turning radius

Steering angle greater than 45°,Minimum turning radius 4m.
Oil for independent hydraulic system

Enhancing the lifespan and stability of the chassis and vehicle hydraulic system, facilitating maintenance of the chassis and vehicle hydraulic systems.
180L large capacity fuel tank

It can meet user's demand for 8-hour operation per day. Compared to mainstream benchmark models in the market, the endurance time increases by 30%.
Standard rear wheels with infinitely adjustable width

Front wheel 1300mm-1800mm stepped, rear wheel 1300mm-1950mm stepless, meeting various agricultural operational needs.

Dual-purpose for both wet and dry conditions

Meet different operating conditions

Item Unit D904-4P: Engine model - Quanchai V38; Engine rated power/speed kW/ r/min 66.2/2300; Fuel tank capacity L 180; Transmission - Power shift，Synchronizer shifting; Gear - 12F+12R; Speed range km/h 2.15-35.25; Maximum lifting capacity（At 610mm from the end of the lifting arm） kN ≥25; Number of hydraulic output groups - 2 groups（Optional 3 groups）; PTO speed r/min 540/760; Cab type features Four-pillars silent air-conditioned cab; Overall dimensions （length × width × height） mm 4550×2050×2920（cab top）; Wheelbase mm 2330; Wheel track, front/rear mm 1300、1600、1800、1900/1300-1950; Minimum operating weight kg 3900; Tires, front/rear - 12.4-24/16.9-34(R-1)；9.5-24/16.9-30(PR-1)；1.3m 11.2-24/12-38（R-1）；11.2-24/16.9-34(PR-1)
