8E Series
W4004-8E
  • Engine model:Yuchai YCK16775-T300
  • Engine rated power/speed (kW/ r/min):570/1900
  • Fuel tank capacity (L):/
Application Conditions
Dryland Dryland
W4004-8E

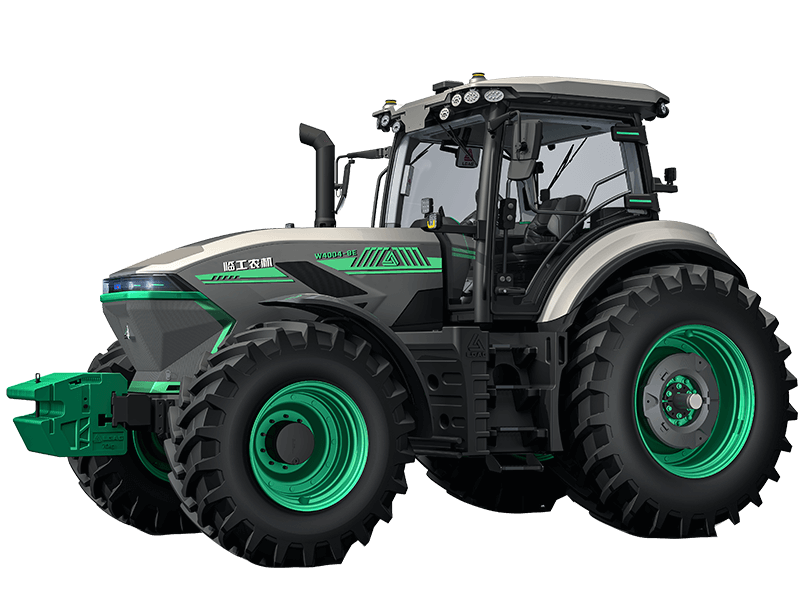

Heavy Tractor

China's first hybrid heavy tractor with independent wheel-side drive

W4004-8E
Advantages and Features
  • Four-wheel independent drive

    Four-wheel, four-motor independent drive ensures no tire slippage, maximizing soil traction and providing high pulling force and efficiency.

  • Capable of in-place turning

    Independent control of speed and direction for all four wheels allows for near-zero-radius turning capability.

  • Front PTO, front suspension

    Optional front PTO and front suspension available to meet complex operational needs.

  • Rear PTO stepless speed regulation

    The rear power output can achieve stepless speed regulation from 0-1000 rpm, compatible with various agricultural implements, offering a wider range of adaptability.

  • Comfortable and intelligent cockpit

    Comfortable and intelligent cockpit configuration, intelligent driving system, paired with four-screen linkage, making driving easier.

Dryland Operations
W4004-8E
W4004-8E
Item Unit W4004-8E
Engine model - Yuchai YCK16775-T300
Engine rated power/speed kW/ r/min 570/1900
Fuel tank capacity L /
Transmission - Four-wheel independent wheel-side transmission
Gear - 2
Speed range km/h 0-50
Maximum lifting capacity(At 610mm from the end of the lifting arm) kN /
Number of hydraulic output groups - Rear 6+1 route, front 2+1 route
PTO speed r/min 0-1,000 continuously variable speed regulation
Cab type features Mute Shock-absorbing Cab
Overall dimensions (length × width × height) mm 6850×3250×3700
Wheelbase mm 3400
Wheel track, front/rear mm 2370/2370
Minimum operating weight kg 16000
Tires, front/rear - 600/65 R38,900/60 R42
