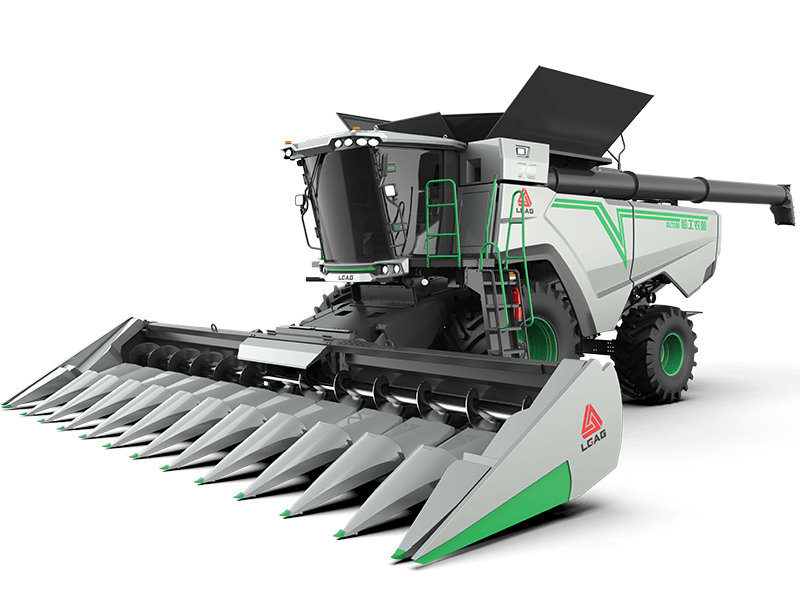

Compatible with 9 to 15m grain headers, achieving a feed capacity of 20kg/s, effortlessly harvesting over 100mu per hour, with a total operational capacity of 2,000mu per day, and compatible with 8 to 12-row corn grain headers;With the largest grain bin capacity in its class, holding up to 14,500L, unloading speed reaches 150L/s, and the entire unloading process takes just 94s; high transfer speed of up to 40km/h;Hydraulic transmission matches with two-speed power shifting technology, allowing for automatic gear changes, with first gear operational speed ranging from 0 to 20km/h, and second gear used for field transfers;Hydraulic four-wheel drive allows for high- and low-speed switching, featuring an electronic differential lock. With optional triangular tracks, it offers enhanced mobility in complex terrains and confidently tackles muddy work environments;The fuel tank has a capacity of 1,300L, reducing refueling frequency and boosting overall operational efficiency.

The machine is equipped with over 30 sensors that continuously monitor crop moisture, yield, harvesting loss rate, and system speeds, allowing for timely adjustments to operational parameters;The three-stage single-axle threshing and separation system features a threshing drum size of 840×3,200mm, with a separation area of 2.8m², delivering the highest threshing and separation efficiency in its class;The cleaning area reaches 5.9m², which is a 13.5% improvement over similar harvesters, resulting in higher cleaning efficiency, reduced losses, and cleaner grain;Five types of threshing concaves and three types of threshing drums can be combined for efficient, low-loss harvesting of field crops.

The cab comes standard with a four-screen linkage system, putting all operational parameters at your fingertips. Smart lighting editing and mobile remote monitoring of crop yield, moisture content, and other operational parameters allow for seamless control;Intelligent operating platform allows for on-the-fly adjustments of fan speed, drum speed, header speed, sieve opening, throwing angle, and guide board directly from the cab;In complex terrain, the header on-site can be adjusted in real-time for left-right and front-back positioning, with quick switching to hydraulic four-wheel drive;The spacious, sealed cab maintains noise levels ≤ 76 decibels;The family series intelligent cockpit features an onboard refrigerator, suspension seats, heating and cooling air conditioning, and electric heated rearview mirrors, making driving and riding more comfortable and relaxed.
